Huizhou factory internal fast door manufacturer * first class fast door installation technology trustworthy

Time: 2020-04-18 View: 1496
Huizhou factory internal fast door manufacturer * first class fast door installation technology trustworthy

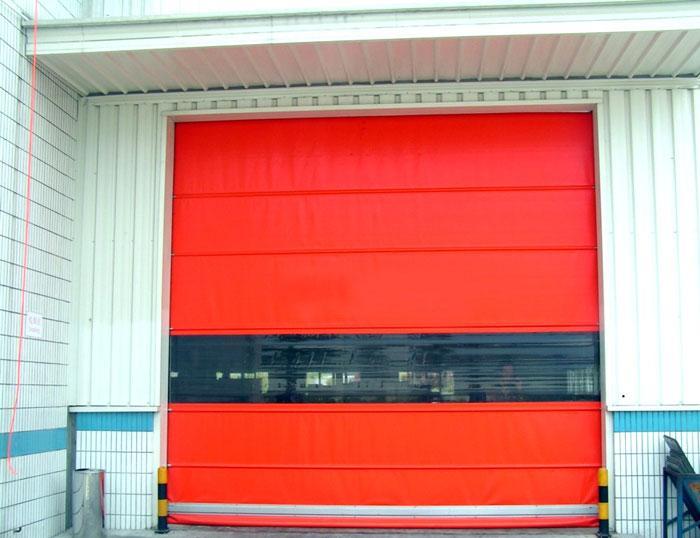

Name: Huizhou factory internal fast door

Manufacturer: Haifeng Automatic Door Co., Ltd

Fast door curtains can be opened / closed quickly. Effectively prevent air convection and save building energy consumption. Keep a clean working environment to prevent dust from entering the plant.


It is specially designed for the logistics channel with small space. The motor does not occupy the installation space and meets the needs of special site. The curtain is composed of lightweight fabric and aluminum wind ribs, which is fast, safe, reliable, easy to use, insect proof and dustproof.

Product application

It can quickly open / close curtains, effectively prevent air convection, and save building energy consumption. Keep the working environment clean and prevent dust from entering. Efficient and fast implementation of vehicle and personnel passing without waiting.

It is suitable for food, automobile, industry, logistics and other fields. For different applications and purposes, our company provides various types of internal and external doors for customers to choose. Light industry, food, electronics, storage, packaging, printing, chemical and other industries.

Product characteristics


Appearance: high strength anti alumina alloy door frame 120 × 130mm, silver white, in accordance with 6063-T6 standard, cold rolled steel plate electrostatic spraying door frame 140 × 150 mm, cold rolled steel plate electrostatic spraying door pocket.


Power performance: German brake motor, power, power supply 220V / 380V, brake voltage 220V.

Control system: adopt imported microcomputer frequency conversion control electrical box.

Control voltage: safety Low Voltage 24VDC.

Opening speed: opening second / closing second (frequency control).

Curtain material: imported high density polyester fiber surface coating treatment, thickness, color selection.


Tensile strength: 5700 / 5100n / 5cm, tear strength: 900 / 80N.

fire rating: German standard mzd / NBL flame retardant.

Service temperature: - 10 ℃ + 70 ℃ / supercooled zone - 40 ℃.

Transparent window: imported PVC transparent crystal soft board, the thickness can be rectangular or oval.

Wind resistant material: aluminum alloy wind resistant rib, sectional connection, convenient replacement.

Wind resistance: 9m / S (50pA standard 3 × 3).

Sealing performance: the U-shaped airbag bag at the bottom of the curtain fits closely with the uneven ground, and the sealing wool belt on both sides of the door frame is dust-proof and insect proof.

Safety configuration: standard infrared photoelectric protection, pressure air bag, warning light, anti-collision column, power off manual rocker.
