Nanshan District [garage door electric door remote control door] maintenance and accessories supplier

Time: 2020-04-11 View: 1790
Nanshan District [garage door electric door remote control door] maintenance and accessories supplier

As a supplementary remote control of infrared remote control, the automatic door remote control of Shenzhen Haifeng Automatic Door Co., Ltd. has been widely used in garage door, electric door, road door remote control, anti-theft alarm, industrial control, wireless intelligent home and other fields.

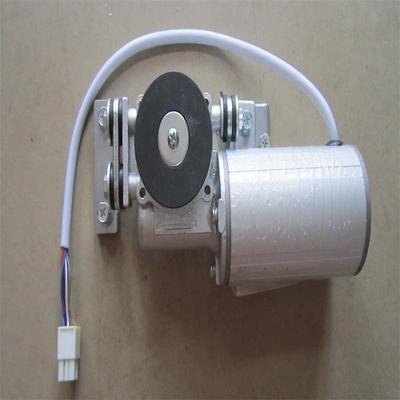

Operation of Haifeng automatic door controller


1. installation:

The installation shall be carried out correctly by professional personnel in accordance with the requirements of the instructions. The power line and motor power line are copper core armored cables, the diameter of conductor is not less than 1.5mm2, other control lines are copper core cables, and the cross section of conductor is not less than 0.5mm2. The live line of the power supply is connected to the L end of the controller, and the zero line is connected to the N end of the controller. Internal fusion shall be used for Ф 5 × 20 mm / 6 fast fuses. Do not use the internal fuse as a direct short circuit. The head motor of the power door is connected to the P1 terminal of the machine. The alarm shall be connected to the P4 terminal block of the unit. The other basic control lines are connected to the P2 terminal block of the unit. When installing the wiring, the wiring shall be correct according to the wiring diagram attached to the product. Take special care not to connect the low-voltage control line to the high-voltage terminal or the high-voltage control line to the low-voltage terminal. The wiring and installation of the controller shall comply with the relevant provisions of the electrical safety operation regulations in addition to the provisions of this product. The installation position of the controller is based on the specific situation of the user, and five magnetic field interference is selected to hang on the wall. The installation height shall not be 1.2m lower than the ground. Outgoing cables shall be firmly fixed along the wall. Before starting the machine, all installation work shall be checked comprehensively, and the machine can be started only after it is confirmed to be correct. The probe is installed at a proper height outdoors and the angle can be adjusted.

2. operation:

Manual control:

After the power is turned on, a "-" is displayed in the middle of the digital display window of the controller, which is the standby state of the controller. The four buttons on the controller panel are "close", "stop", "open" and "alarm". When the "open" or "close" key is pressed, the display window will display "H" or "e" respectively. At this time, the gantry crane drives the door body to move, and the controller has low-frequency signal sound at this time. When the door body moves, when the limit switch works or the automatic delay action, the door body automatically stops moving, and the low-frequency signal sound automatically stops sounding. When switching from door opening to door closing or from related personnel to door opening, only pressing the stop key can switch.

Remote control of door body switch:

The "a" key of the remote control corresponds to the manual switch of "door opening", the "stop" key of the "B" key, the "C" key corresponds to the "manual switch, close the door" and the "alarm" function key of the "d" key correspond to the manual switch. When using, press the corresponding function key of the remote control for about 1-0.5s, the door will move or stop according to the set function, and its operation process is the same as that of manual control. The control distance of the remote control is affected by the intensity of electromagnetic field, battery voltage of remote transmitter and climate change. This is normal. The control distance can be increased by using the pull rod antenna.

Alarm function setting:

Press the "alarm" manually controlled or the "d" key of the remote control to set the alarm status. This key is a repeat key, i.e. set and release alarms alternately. When the alarm status is set, the window displays "day". When the alarm state is released, the window displays "-". In case of alarm, the controller will send out high frequency audio signal. When the door body is started (opened and closed), the alarm state will be released automatically. When the door body moves, the alarm can still be set, but the alarm function is suspended. When the door stops moving, the alarm status will be restored automatically.
